Antimicrobial Plus Hospital Curtains - Standard Colours

Why Antimicrobial Plus?

Unlike other available antimicrobial curtains, Endurocide® Antimicrobial Plus Curtains are:

  tick green Proven to remain active for up to two years*

  tick green Silver additive free

  tick green Tested and proven to be effective against the top five pathogen groups found in hospitals: bacteria, fungi, mycobacteria, spores & viruses*


 Other important benefits:

circle 1   circle 2   circle 3   circle 4
PATENTED COATING
for up to two year long life*
  REDUCING RISK
& saving valuable time
  OVERALL SAVINGS
over two years
  PEER REVIEW TESTED
in over eight countries

International Peer Reviews

Hong Kong

Joint University & Government study

Singapore

Independent laboratory report

Australia

Monash Healthcare study

South Africa

Hospital COVID-19 report

South Africa

Independent laboratory report

United Kingdom

NHS Hospital Trust report

New Zealand

Published article

Norway

Independent University Report

Denmark

Independent laboratory report


 *Disclaimer: Two year long life applies to Endurocide® Antimicrobial Plus Standard Curtains only and whilst Endurocide® Antimicrobial Plus Standard Curtains have been independently tested to remain antimicrobially and sporicidally effective for up to two years in-situ, the actual length of curtain use achieved will depend on a variety of factors, including, but not limited to: individual hospital practices; the natural longevity of polypropylene; the risk of the curtain being soiled from items such as blood, urine and general spills; etc. Curtains should always be replaced when visibly soiled. Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.  See individual curtain testing pages for full details on pathogens tested against.

International Laboratory Testing


To validate our claims, Endurocide® Antimicrobial Plus Curtains have been independently laboratory tested to international standards against pathogens including:

tick green C.difficile spores   tick green Serratia marcescens   tick green MRSA
tick green VRE   tick green E.coli   tick green E.hirae
tick green Pseudomonas aeruginosa
  tick green ESBL E.coli
  tick green ESBL Klebsiella pneumoniae
tick green Salmonella choleraesuis
  tick green Acinetobacter baumanii
  tick green Mycobacteria tuberculosis
tick green Aspergillus niger
  tick green Candida albicans
  tick green Candidia auris
tick green Human Coronavirus
  tick green Measles virus
  tick green H1N1 Swine flu

Sporistatic & Bacteriostatic testing

Qualitative “Zone of Inhibition” tests demonstrate that the fabric is sporistatic and bacteriostatic and whether it can prevent pathogens from growing and reproducing on treated fabric. The International Standards for bacteriostatic & sporistatic fabrics are AATCC 147 and CG 147.

  New curtains "box fresh"

  Spores

Standard

Standard
  • Clostridium difficile
CG 147
  • Clostridium difficile
AATCC 147

  Bacteria

Standard

Standard
  • Acinetobacter baumannii
CG 147
  • Enterococcus hirae
CG 147
  • Acinetobacter baumannii (CMA)
CG 147
  • Escherichia coli
 CG 147
  • Acinetobacter baumannii (MDRA)
CG 147
  • Pseudomonas aeruginosa
CG 147
  • Methicillin resistant Staphylococcus aureus (MRSA)
AATCC 147
  • Vancomycin resistant Enterococcus faecalis (VRE)
CG 147
  • Methicillin resistant Staphylococcus aureus (MRSA)
CG 147


  Fungi

Standard

Standard
  • Aspergillus niger
CG 147
  • Candida auris
CG 147
  • Candida albicans
CG 147

  Mycobacteria

Standard

  • Mycobacterium tuberculosis
CG 147

  Curtains 1 year after manufacture

  Spores

Standard

  • Clostridium difficile
CG 147

  Bacteria

Standard

Standard
  • Escherichia coli
CG 147
  • Salmonella typhimurium
CG 147

  Fungi

Standard

  • Candida albicans
CG 147

  Curtains 2 years after manufacture

  Bacteria

Standard

Standard
  • Acinetobacter baumanii
CG 147
  • Klebsiella pneumoniae
CG 147
  • Extended Spectrum Beta-lactamase (ESBL) Escherichia coli
CG 147
  • Methicillin resistant Staphylococcus aureus (MRSA)
CG 147
  • Extended Spectrum Beta-lactamase (ESBL) Klebsiella pneumoniae
CG 147
  • Vancomycin-resistant Enterococcus faecalis (VRE)
CG 147

Back to top


Sporicidal & Bactericidal testing

Quantitative tests to demonstrate that the treated fabric is capable of killing pathogens. The International Standards for biocidal treated fabrics are ISO 20743, ATCC 100 and JIS Z 2801.

  New curtains "box fresh"

  Spores

Standard

Standard
  • Clostridium difficile
AATCC 100
  • Clostridium difficile
JIS Z 2801

  Bacteria

Standard

Standard
  • Escherichia coli
AATCC 100
  • Salmonella typhimurium
AATCC 100
  • Staphylococcus aureus
JIS Z 2801
  • Salmonella choleraesuis
JIS Z 2801
  • Methicillin resistant Staphylococcus aureus (MRSA)
AATCC 100
  • Extended Spectrum Beta-lactamase (ESBL) Escherichia coli
AATCC 100
  • Staphylococcus aureus
ISO 20743
  •  Klebsiella pneumoniae
ISO 20743
  • Methicillin resistant Staphylococcus aureus (MRSA)
JIS Z 2801

  Fungi

Standard

Standard
  • Aspergillus niger
AATCC 100
  • Candida auris
AATCC 100
  • Candida albicans
AATCC 100
  • Candida albicans
JIS Z 2801

  Curtains 1 year after manufacture

  Spores

Standard

  • Clostridium difficile
AATCC 100

  Curtains 2 years after manufacture

  Spores

Standard

Standard
  • Clostridium difficile
AATCC 100

Back to top


Liquid treatment testing

The following testing has also been carried out on the liquid used to provide the antimicrobial and sporicidal coating on the curtains:

  Enveloped viruses

Standard

Standard
  • Human Coronavirus
EN 14476
  • Measles virus
EN 14476
  • H1N1 Influenza A virus (Swine Flu)
EN 14476

Back to top


Fire Retardant Standards

Our curtains have been tested to the following International fire retardant standards:

  Country/Region


 Standard
  • UK & Europe
  BS 5867 Part 2 Types B & C: 2008
  • USA & Canada
  CAN/ULC-S109; NFPA 701: 2010
  • Australia & New Zealand


AS 2755.2: 1985

AS 1530.2-1993 Part 2


For further information or to request copies of our test certificates, please contact us.


* DISCLAIMER: Whilst Endurocide® Plus Curtains have been independently tested to remain antimicrobially and sporicidally effective for up to two years in-situ, the actual length of curtain use achieved will depend on a variety of factors, including, but not limited to: individual hospital practices; the natural longevity of polypropylene; the risk of the curtain being soiled from items such as blood, urine and general spills; etc.  Curtains should always be replaced when visibly soiled. Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Product Options

Endurocide® Antimicrobial Plus Curtains are available in a number of different types and colours and with different hooks to suit your requirements.



Curtain types

Standard

For use with suspended ceiling rails.



Mesh Top

With NFPA 13 compliant mesh for sprinkler access with ceiling-fixed rails.



Mesh Cut

An economical alternative to the Mesh Top curtain.



Long Drop

For use with ceiling-fixed rails.

TYPE SC 3   TYPE SMTC 3   TYPE SMC 3   TYPE SLD 3

Back to top

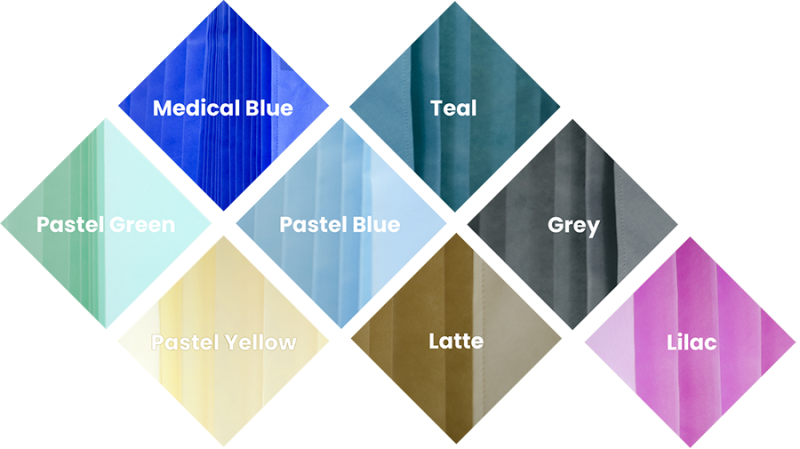

Colours

colour diamonds 1 8
  1. Medical Blue

  2. Pastel Blue

  3. Pastel Green

  4. Pastel Yellow

  5. Teal

  6. Latte

  7. Grey

  8. Lilac



To download a booklet of the colours available, please click or tap here.

Back to top


Hanging Systems

Eyelet only



Quick-fit hooks



Large-top hooks



U-type hooks

HOOK E SC   HOOK QF SC   HOOK LT SC   HOOK U SC


Wheeled hooks



Wide-wheeled hooks



Metal-bar wide-wheeled hooks



Eyelet extension hooks

HOOK WH SC   HOOK WWH SC   HOOK MWW SC   HOOK EEH SC

Back to top


Sizes



 Standard

 Long drop

Meshtop

 Meshcut

  • Height
 2.0m 2.6m 2.55m 2.55m
  • Full width

7.5m

(visible: 7.35m)

7.5m

(visible: 7.35m)

7.5m

(visible: 7.35m)

7.5m

(visible: 7.2m)
  • Medium width

5.55m

(visible: 5.4m)

5.55m

(visible: 5.4m)

5.55m

(visible: 5.4m)

5.55m

(visible: 5.25m)
  • Half width

3.75m

(visible: 3.6m)

3.75m

(visible: 3.6m)

3.75m

(visible: 3.6m)

3.75m

(visible: 3.45m)
  • Mesh height
N/A N/A 0.55m 0.55m
As a general rule, total curtain width needs to be 2 x length of curtain rail. Please note: Curtain width refers to the total fabric used. Visible width will be reduced due to double-pleating. Please note there is a +/-9% tolerance on all aspects of the curtains.

Back to top


Order Code Selector

 To generate an Order Code, please use our handy online Code Selector tool:

Note: Meshcut curtains do not meet US NFPA 13 specifications and are not suitable in areas that require mesh for sprinkler access.

Our technology is different...

Whilst traditional polyester curtains, natural fibre or short-life disposable curtains can easily become sources of pathogenic transmission within days of installation, our curtains are different...





At the curtain manufacturing stage, the polypropylene curtain fabric is impregnated with our unique, patented Endurocide® Curtain Liquid.

This impregnation coats the curtain fabric creating a polymer layer which has a dual ‘static’ and ‘cidal’ action.

The ‘static’ action allows the curtain fabric to trap pathogens on the surface of the fabric and prevent them from multiplying, whilst the ‘cidal’ action then kills the pathogens - helping to break the chain of infection!

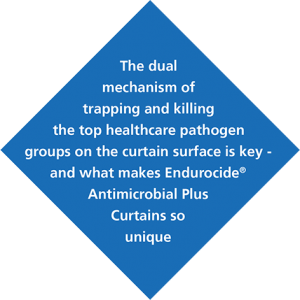

technology diamond

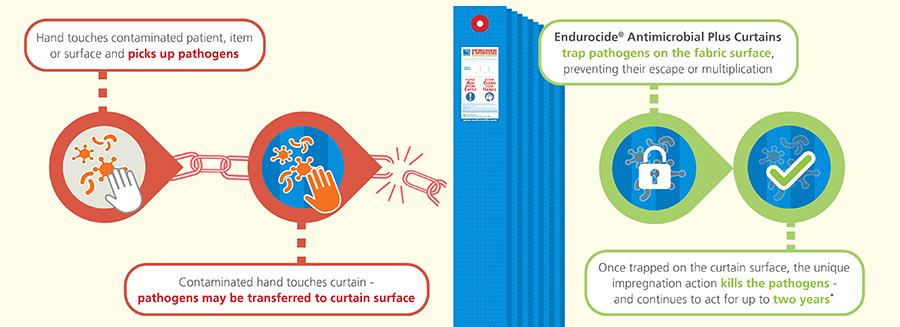

Breaking the chain of infection

Chain of infection

Endurocide® Antimicrobial Plus Curtains prevent potential retransmission of pathogens to staff, patients, visitors, equipment, surfaces and any other items - breaking the chain of infection!


Our technology in action...

Endurocide® Antimicrobial Plus Curtains kill the top 5 pathogen groups:*

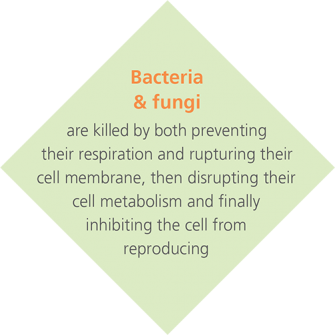

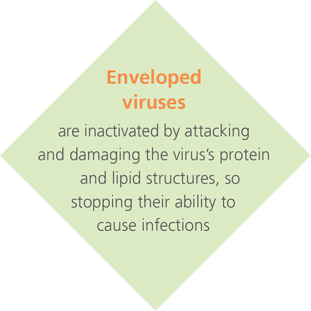

bacteria diamond spores diamond viruses diamond

 *Disclaimer: Two year long life applies to Endurocide® Antimicrobial Plus Standard Curtains only and whilst Endurocide® Antimicrobial Plus Standard Curtains have been independently tested to remain antimicrobially and sporicidally effective for up to two years in-situ, the actual length of curtain use achieved will depend on a variety of factors, including, but not limited to: individual hospital practices; the natural longevity of polypropylene; the risk of the curtain being soiled from items such as blood, urine and general spills; etc. Curtains should always be replaced when visibly soiled. Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.  See individual curtain testing pages for full details on pathogens tested against.

In the UK:

Hospitals:

nhs supply chain logo2x 2

Bulk purchase or reseller information:

 quote button


Outside the UK:

map2021

We have existing Distributors in the countries highlighted in green - for information on who to contact in your territory, please contact us.


Interested in becoming a Distributor?

If you'd like to find out how to become our distributor in any other territory, we would be very pleased to hear from you!

contact mailchimp

How do Endurocide® Antimicrobial Plus Hospital Curtains work?

At the curtain manufacturing stage, the polypropylene curtain fabric is impregnated with a combination of our unique, patented Endurocide® Curtain Liquid and a flame retardant chemical.

The Endurocide® Curtain Liquid coats the fabric with a biostatic and biocidal polymer layer. If pathogens come into contact with the fabric, the Endurocide® Curtain Liquid layer instantly starts working by trapping the pathogens on the fabric and preventing them from multiplying and being re-transmitted.

Covid Shield Orange viruses
  • Endurocide® Antimicrobial Plus Hospital Curtains kill spores by piercing through their spore coats and cortex and then causing lethal DNA damage to the spore.
  • Endurocide® Antimicrobial Plus Hospital Curtains kill bacteria by first preventing their respiration, then disrupting their cell metabolism and finally inhibiting the cell from reproducing.



Why were Endurocide® Antimicrobial Plus Hospital Curtains created?

Studies have shown that traditional hospital “curtains are rapidly contaminated with potentially pathogenic bacteria” and “curtains are a potentially important site of bacterial contamination in hospitals”1.

On top of this, further studies show that pathogens such as MRSA, VRE and C.difficile spores are capable of surviving on surfaces for weeks, meaning that hospital workers can touch these contaminated surfaces and then transmit these pathogens onto patients2.

Traditional polyester curtains, or standard polypropylene curtains that haven’t been treated with an antimicrobial agent, can quickly & easily become sources of pathogenic transmission.  For example, a healthcare worker who touches the patient could possibly transmit this infection to an object/surface, such as a hospital curtain. If this happens, this object now has the potential to contaminate anyone who comes in contact with the surface. All of this means that traditional Hospital Curtains are a potential source for the spread of healthcare-associated pathogens3.

technology diamonds1technology diamonds2technology diamonds3



Endurocide® Antimicrobial Plus Hospital Curtains were specifically created to help hospitals reduce the potential for this pathogenic transmission to occur from Hospital Curtains and they are therefore effective against the top pathogen groups commonly found in hospitals worldwide:


  • Spores
  • Bacteria
  • Fungi

  • Mycobacteria
  • Enveloped Viruses

Sources:
    1. Ohl, Michael; Schweizer, Marin; Graham, Maggie; Heilmann, Kristopher; Boyken, Linda; Diejema, Daniel “Hospital privacy curtains are frequently and rapidly contaminated with potentially pathogenic bacteria” American Journal of Infection Control (2012)
    2. Boyce, John M “Environmental contamination makes an important contribution to hospital infection” Journal of Hospital Infection (2007) 65(S2) 50-54
    3. Trillis III, Floyd; Eckstein, Elizabeth C; Budavich, Rachel; Pultz, Michael J; Donskey, Curtis J “Contamination of Hospital Curtains with Healthcare-Associated Pathogens” Infection Control and Hospital Epidemiology (November 2008) Vol. 29, No.11

What makes Endurocide® Antimicrobial Plus Hospital Curtains different to other curtains?

Traditional curtains have the potential to become sources of transmission for Hospital Acquired Infections (HAIs). To counteract this, in 2005 we created a disposable curtain that offered antimicrobial protection.

However, the major flaw with the antimicrobial system is that it is unable to have an effect against spores such as C.difficile, which can survive on surfaces for very long periods of time. This means that even antimicrobial curtains can have the potential to become a source of transmission of HAIs within the hospital.

Endurocide® Antimicrobial Plus Hospital Curtains are different to existing curtains on the market because they have been specifically designed to help break the chain of infection and help prevent the spread of HAIs in the hospital, offering a safe to use, long-lasting and powerful curtain capable of killing bacteria, fungi, spores, mycobacteria and enveloped viruses.

Using a patented formula, which is only available on Endurocide® Antimicrobial Plus Hospital Curtains, the curtains become an effective barrier to the transmission of infections, by trapping and killing pathogens on the curtain surface in seconds!

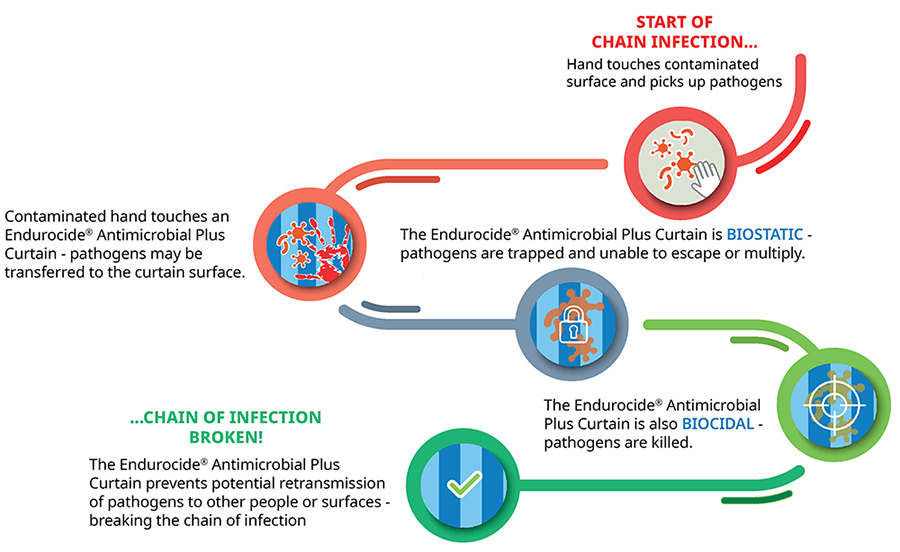

Process Map Complete+

This dual mechanism of trapping & killing the pathogens is key.  The Curtain fabric traps pathogens on the surface, preventing them from being picked up when the Curtain is touched and then, when the pathogens are trapped, the Curtain kills the pathogens, preventing them from multiplying or remaining a risk to users on the Curtain.

How can Endurocide® Antimicrobial Plus Hospital Curtains help reduce the spread of HAIs?

Studies have shown that up to 40% of HAIs can be attributed to the cross infection from the hands of health care personnel, who are contaminated either by direct contact with a patient or indirectly by touching contaminated surfaces1. It has also been shown that contaminated hands can transfer viruses to 5 more surfaces2 or 14 other subjects3

On top of this, pathogens can survive on surfaces for long periods of time, with C.difficile spores and MRSA being shown to survive on surfaces for up to 5 months and 7 months respectively4. It is widely understood that hand hygiene protocols and surface disinfection procedures are essential in minimising the potential for this cross contamination.

However, what about the hospital curtain?  What procedures are there to minimise its potential for contamination? If a health care worker touches a contaminated surface and picks up the contamination, then touches a hospital curtain, they have the potential to contaminate the hospital curtain.  With some hospital curtains remaining in-situ for anywhere between one day to six months, these hospital curtains have the potential to become sources of transmission of infections for anyone who comes into contact with them.

Until now there was not much that you could do about this.  However, Endurocide® Antimicrobial Plus Hospital Curtains have changed this! By being tested and proven to kill spores, bacteria and fungi, Endurocide® Antimicrobial Plus Hospital Curtains offer an effective barrier to pathogens and help hospitals maintain their hand and surface hygiene protocols – by minimising the potential for the hospital curtain to become a source of infection.


    1. Weber, David J; Rutala, William A; Miller, Melissa; Huslage, Kirk; Bennet-Sickbert, Emily “Role of hospital surfaces in the transmission of emerging health care-associated pathogens: Norovirus, Clostridium difficile, and Acinetobacter species” Am J Infect Control (2010) 38 S25-33
    2. Barker, J; Vipond, IB; Bloomfield, SF “Effects of cleaning and disinfection in reducing the spread of norovirus contamination via environmental surfaces” Journal of Hospital Infection (2004) 58:42-44
    3. Von Rheinbaben, F; Schunemann, S; Gross, T; Wolff, MH “Transmission of viruses via contact in a household setting: experiments using bacteriophage strain phiX!!74 as a model virus” Journal of Hospital Infection (2000) 46:61-66
    4. Kramer, Axel; Schwebke, Ingeborg and Kampf, Günter “How long do nosocomial pathogens persist on inanimate surfaces? A systematic review” BMC Infectious Diseases (2006), 6:130

How quickly do Endurocide® Antimicrobial Plus Hospital Curtains start working?

Endurocide® Antimicrobial Plus Curtains are ready to work as soon as you take them out of the box and have been independently tested and shown to kill pathogens in seconds.

If you would like more information about the testing that has been conducted on our Endurocide® Antimicrobial Plus Curtains, please visit our Our Technology or International Testing tabs, or contact us for more details on:

What's the difference between our Curtains and competitor Curtains?

We have found that there are numerous products on the market that claim to be antimicrobial, but do not define what this means and what exactly the product is capable of doing.

When comparing products, it is very important to understand how an antimicrobial hospital curtain works and how its effectiveness is tested and verified. It is also important to understand that there are different ways that an antimicrobial curtain can work, for example:

    • Does the curtain simply trap the bacteria on the fabric?
    • Does it actually kill the bacteria?
    • Does it do both?

Endurocide® Antimicrobial Plus Hospital Curtains are independently tested and shown to not only trap the pathogens on the fabric, but to also kill them - meaning that the curtains are sporistatic, bacteriostatic, sporicidal and bactericidal.

Sporistatic & Bacteriostatic

These terms refer to whether a curtain is capable of inhibiting the growth and reproduction of spores and bacteria. As our Endurocide® Antimicrobial Plus Hospital Curtains have been independently tested and shown to be both Sporistatic and Baceteriostatic, our curtains will trap any spores and bacteria that come into contact with the curtain and prevent these pathogens from escaping and being re-transmitted to another surface.

  • The International Standards to demonstrate that a fabric is Sporistatic and Bacteriostatic are AATCC 147 & CG 147. These tests are qualitative tests, in that they evaluate the fabric’s antimicrobiality.

Sporicidal & Bactericidal

This means that the curtain is capable of actually killing the spores and the bacteria on the surface of the curtain, preventing them from multiplying and becoming a source of transmission.

  • The International Standards to demonstrate that a fabric is Sporicidal and Bactericidal are ISO 20743, AATCC 100 and JIS Z 2801. These tests are quantitative tests, in that the number/reduction of bacteria on the curtain is counted.

Traps Kills Diamond3

Although we refer to the Endurocide® Antimicrobial Plus Hospital Curtains as being primarily Sporicidal & Antimicrobial, it is important to understand that in order for the curtain to be truly effective, it must have been tested and shown to be both Sporistatic & Bacteriostatic as well as being Sporicidal & Bactericidal.

As far as we are aware, our patented Endurocide® Antimicrobial Plus Hospital Curtains are the only curtains available on the market that can claim this!

Where should you use Endurocide® Antimicrobial Plus Hospital Curtains?

Endurocide® Antimicrobial Plus Curtains have been designed to be used wherever Infection Control & Infection Prevention is of paramount concern.

We would recommend that Endurocide® Antimicrobial Plus Curtains should be used in, amongst others, Intensive Care Wards, High Dependency Units, Isolation Wards, Burn Units, Cardiology Wards, General Surgery Wards, Maternity Wards, Neonatal Wards and Orthopaedic Wards.

Please refer to the table below for more information:

Intensive care units

tick green



Gynaecology

tick green

High dependency units

tick green



Obstetrics

tick green

Infection disease units

tick green



Isolation wards

tick green

Burns units

tick green



Accident and Emergency

tick green

Cardiology wards

tick green



General wards

tick green

Oncology wards

tick green



Day wards

tick green

Operation suites

tick green



General practice wards

tick green

General surgery wards

tick green



Occupational therapy

tick green

Maternity & neonatal wards

tick green



Physiotherapy

tick green

Renal units

tick green



Rheumatology

tick green

How do you store Endurocide® Antimicrobial Plus Hospital Curtains?

All Endurocide® Curtains should be stored at ambient temperatures - i.e. at a maximum of 25°C max - and out of direct UV light.

If stored as above, Polypropylene remains stable for approximately 12 months, but after this time will start to gradually degrade.  This degradation process will occur at a faster rate in the presence of warm/high temperatures, humid conditions and most importantly in the presence of UV light.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Are there any instructions supplied with Endurocide® Curtains?

Yes: every box of Endurocide® Curtains includes an Instruction Sheet in order to give our end users clear information on how to use and get the most out of their curtains.

  • To download a copy, please click here.

Can I clean or wipe Endurocide® Disposable Curtains?

No: disposable curtains are designed to be replaced when visibly soiled and it is not advised to clean any of our curtains by any mechanical means.

Regarding Endurocide® Antimicrobial Plus Curtains, wiping or cleaning them may affect the performance of the patented sporicidal formulation coated onto the curtain surface. The curtains are designed to kill pathogens in-situ and do not require any cleaning to improve their function.  When any of our curtains become visibly soiled, they should always be replaced.

Can I leave Endurocide® Antimicrobial Plus Hospital Curtains in-situ when disinfecting with a misting/fogging machine?

No: it is recommended that Endurocide® Antimicrobial Plus Curtains are taken down when disinfecting with a misting/fogging machine.

The peroxide used in fogging/misting operations may react with the patented formulation coated onto the curtain's surface and over time reduce the effectiveness against pathogens. The use of peroxide is also likely to affect the labels affixed to the curtains, resulting in a visible discoloration of the information on the curtain label.

Can I hang Endurocide® Antimicrobial Plus Curtains in areas of direct sunlight?

It is advised that Endurocide® Antimicrobial Plus Curtains are not placed in areas where they are exposed to prolonged direct sunlight.

Although the curtains will still be effective against pathogens, the polypropylene material the curtains are made from is not UV resistant and may suffer accelerated ageing as a result: this will lead to a loss in tensile strength and elasticity of the curtains which will become visible as “pilling”.

Pilling is caused by the fibres in the polypropylene becoming brittle with UV exposure, breaking down and coming loose from the main fibre chains. This effect is normally only observed after several months in direct sunlight.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Will Endurocide® Hospital Curtains work with existing tracking?

Endurocide®  Antimicrobial Plus Curtains are available supplied with eyelets only or with a choice of seven different hanging systems so will fit work with most popular track systems.

  • For further information on the Hanging Systems available, please refer to the Product Options tab.

How do I know I'm choosing the correct hook for my railing system?

When choosing the type of hook you order with your curtain, it’s important that you order the correct size to fit your railing - and with so many types of railings available worldwide, this is sometimes easier said than done!

There are two ways to help ensure the hook will be suitable for your railing:


  • Hook measurements: take the measurements of your existing hooks.
    • The two dimensions you require are head/glider width (A) and neck width (B).
  DIMENSIONS HOOK GLIDER

  • Railing measurements: if available, use the inner measurements of your railing.
    • The two dimensions you require are inner width (X) and channel width (Y).
  DIMENSIONS RAILING

  • These measurements will make sure your hook fits in your railing and is neither too big (won't fit) nor too small (will fall out)!
  DIMENSIONS RAILING+HOOK

As a quick guide to our different types of hooks, please see the information below:

Hook Type

Order Code


Head width (A)

Neck width (B)

Suitable for railing system*

  • Quick-Fit

QF

 QF 1 S

10.0mm

4.0mm

Silent Gliss 6100

  • Wheeled

WH

WH 3S

9.5mm

4.5mm

Silent Gliss 6100

  • Large-Top

LT

 LT 1S

14.0mm

3.0mm

Movatrack 100

  • Wide-Wheeled

WWH

 WWH 3S

12.0mm

4.5mm

Movatrack 100

  • Metal-Bar Wide-Wheeled

 MWW  MWW  12.0mm  4.5mm  Movatrack 100
  • U-Type

U

 U 1S

N/A**

N/A**

Marlux Fast-Fit

 If you would like a sample pack of the different hooks we have available, please contact us.


Please note: it is important to ensure that the same hook is used throughout your Curtain.  You should never mix hooks types or hook suppliers on one Curtain, as even similar type hooks can have significant differences in dimensions.  To ensure uniform glide of your Curtain in the railing, rails should be regularly cleaned, free from obstacles or gaps and all hooks should be hung at the same height.  Bio Technics accepts no responsibility for the performance of railings.

* The railings given are examples of commonly available systems - it is not meant to suggest that this is the only system that these hooks are suitable for use with.
** The X and Y measurements are not applicable to our U-Type hooks as these are designed to fit over the railing.

How should you dispose of used Endurocide® Curtains?

All Endurocide® Curtains are manufactured from 100% recyclable polypropylene and are completely recyclable.  However, as the curtains are designed to come in contact with potential hospital pathogens, we would recommend that after use Endurocide® Curtains be disposed of as hospital waste or in accordance with local regulations.

For those customers concerned with the whole life of their products, there is the possibility of incinerating the curtains after use for their calorific value.  Polypropylene has a high calorific value and one full width curtain could potentially generate enough energy to light a standard light bulb for an hour and a half.

However, any hospital specific protocols or local regulations concerning the safe disposal of clinical waste should always be adhered to.

How often do Endurocide® Antimicrobial Plus Hospital Curtains need to be replaced?

Endurocide® Antimicrobial Plus Hospital Curtains have been independently tested and shown to offer antimicrobial & sporicidal properties for up to two years after manufacture.

However, due to the nature of polypropylene and the fact that the curtains are designed to be disposable, Endurocidee® Antimicrobial Plus Hospital Curtains should be removed after up to 12 months of use in-situ, or earlier if visibly soiled.

Each hospital will have its own specific protocols and assessments regarding the changing of curtains and these should be adhered to.  We would however recommend that all curtains should be replaced whenever they are visibly dirty.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Have toxilogical studies been carried out on Endurocide® Antimicrobial Plus Hospital Curtains?

Yes: we have conducted an in-depth analysis of the individual chemical components present in our patented formulation which is then applied to our Endurocide® Antimicrobial Plus Curtains as a chemical blend during the treatment process.

To assess the risk of these individual chemical components, we have undertaken a technical analysis of the data available in the public domain and based assessments upon potential absorption and body mass calculations.

For the purposes of our assessments:

    • We calculated that each standard, full width curtain is 15m2 (width: 7.5m x height: 2m).  The Endurocide® treatment blend is uniformly applied to the curtain and equally distributed across the surface.
    • We chose an area of the curtain approximately twice the surface area of the average hand (0.05m2 or 500cm2) and then calculated the mg/m2 of chemical blend used in this area.
    • We then assessed the mg/m2 quantity of chemical blend in this single contact area for:
      • Acute Toxicity risks
      • Repeated Dose risks
    • Calculations were based on average weighted UK males and females.

Conclusions:

For acute exposure risk We assessed both oral LD50 and dermal LD50 (chemical mg/kg body mass) and determined that there is not enough of any substance present in the single contact area to exceed the oral and dermal LD50 values.  In all cases, the quantities of the components that we use in our formulation were significantly lower than the stated maximum LD50 limits.

For repeated dose toxicity risk

It was determined that none of the quantities of individual components used exceeded the “No observable Adverse Effect Level” limits.

 Glossary of Terms & Clarifications:

Acute Toxicity The adverse effects of a substance that results either from a single exposure or from multiple exposures in a short period of time (usually less than 24 hours.)
LD50 Lethal dose (LD50) is the amount of an administered substance that kills 50 percent of a test group. It is typically expressed as milligrams of administered substance per kilogram of body mass.

Are there any guarantees offered on Endurocide® Antimicrobial Plus Curtains?

No:  whilst the biocidal technology used on Endurocide® Antimicrobial Plus Curtains has been independently tested and shown to have long lasting antimicrobial and sporicidal efficacy, the actual length of curtain use will depend on a variety of factors.

Such factors include, but are not limited to: individual hospital practices; the natural longevity of polypropylene; the risk of the curtain being soiled from items such as blood, urine and general spills; etc.  Curtains should always be replaced when visibly soiled.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Are Endurocide® Hospital Curtains fire retardant?

Yes: all types of Endurocide® Hospital Curtains.

Our Endurocide® Curtains have been independently tested and meet the following International Fire Retardant Standards:

    • UK & Europe - BS 5867 Part 2 Types B&C: 2008
    • USA & Canada - NFPA 701: 2010 and CAN/ULC-S109
    • Australia & New Zealand - AS 2755.2-1985 and AS 1530.2-1993 Part 2

For copies of the certificates, please contact us.

Are Endurocide® Curtains available from the NHS Supply Chain?

Yes: a range of Endurocide® Antimicrobial Plus Hospital Curtains are available from the NHS Supply Chain in England and Wales.

  • For further information and links to the NHS Supply Chain website, please click here.

Are Endurocide® Hospital Curtains made from environmentally friendly materials?

All our Endurocide® Curtains are made from 100% polypropylene which has a very low environmental impact when compared with other types of synthetic or traditional materials.

In addition, the liquid used to impregnate our Endurocide® Antimicrobial Plus  Curtains is water-based.

What pack sizes do Endurocide® Curtains come in?

Endurocide® Antimicrobial Plus Curtains are available in the following pack sizes:



 Standard

 Long drop

Meshtop

 Meshcut

  • Full width
Case of 6 Case of 5 Case of 5 Case of 5
  • Medium width
Case of 8 Case of 7 Case of 7 Case of 7
  • Half width
Case of 12 Case of 10 Case of 10 Case of 10
  • For further details on the product options of our curtains, please see the Product Options tab.

Are videos available of Endurocide® Curtains in use?

Yes: please see below for links to videos featuring our curtains used internationally -


Endurocide® Curtains help in the global fight against Coronavirus: Singapore

The below video shows the new COVID-19 Treatment Facility constructed at Singapore Expo using our Endurocide®  Curtains throughout:


Endurocide® Curtains help in the global fight against Coronavirus: South Africa

The video below shows the South African president Cyril Ramaphosa touring one of the many ICU wards established recently across South Africa which were using our Endurocide®  Curtains:


Please also visit our Youtube channel for additional videos and playlists.

Are brochures on the full range of Endurocide® products available to download?

Yes: use the links below to download our latest brochures -

PDF 32   PDF 32   PDF 32   PDF 32

English



Español



Português



Français



All files are PDFs which can be viewed using Adobe Reader - if you do not have this software, it can be downloaded for free from the Adobe website.

Back to top
